LT CURRENT TRANSFOMER

STANDARD TYPES:

• 1. WINDOW TYPE
• 2. RING TYPE
• 3. BUS BAR TYPE
• 4. WOUND PRIMARY TYPE

TECHNICAL SPECIFICATIONS :

• METERING CT’S : ACCURACCY CLASS: 0.1,0.2S,0.2,0.5S,0.5,1,5
• PROTECTION CT’S: 5P,10P WITH Accuracy limit factor (ALF) 5,10 &20
• SPECIAL PROTECTION(PS CLASS) : Any knee point voltage Imag @ Vk,Vk/2,Vk/4
• SUMMATION CT : IPS20,IPS30,IPS40 AVAILABLE ACCURACY CLASS 1 & 0.5
• CORE BALANCE CT’S :
• SYSTEM VOLTAGE : 1.1KV

STANDARD TYPES:

• 1. Single Phase & Three Phase Transformer
• 2. Epoxy Cast Resin Transformer
• 3. Vacuum Pressure Impregnated Transformer ( Tape Wound)

TECHNICAL SPECIFICATIONS :

• METERING CT’S : ACCURACCY CLASS: 0.1,0.2S,0.2,0.5S,0.5,1,5
• PROTECTION CT’S: 5P,10P WITH Accuracy limit factor (ALF) 5,10 &20
• SPECIAL PROTECTION(PS CLASS) : Any knee point voltage Imag @ Vk,Vk/2,Vk/4
• SUMMATION CT : IPS20,IPS30,IPS40 AVAILABLE ACCURACY CLASS 1 & 0.5
• CORE BALANCE CT’S :
• SYSTEM VOLTAGE : 1.1KV

CONTROL TRANSFORMERS

EARTH LEAKAGE RELAY

STANDARD TYPES:

• 1. ANALOG TYPE
• 2. DIGITAL TYPE ( LED & LCD )

MODELS :

• ANALOG ELR-PANEL MOUNT(1A-8A) Model No : SOMAX-01
• ANALOG ELR-PANEL MOUNT (30mA-300mA) Model No : SOMAX-02
• ANALOG ELR- DINRAIL MOUNT(1A-8A) Model No : SOMAX-03
• ANALOG ELR-DINRAIL MOUNT(30mA-300mA Model No : SOMAX-04
• DIGITAL ELR –LED DISPLAY(30mA-10A ) Model No: SOMAX-05
• DIGITAL ELR –LED DISPLAY(30mA-20A ) Model No: SOMAX-06

STANDARD TYPES:

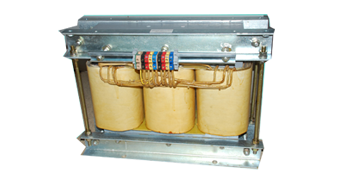

Somax provides high quality Chokes that are fabricated using good quality material. Both AC & DC Chokes with different technical specifications are available with us. Our products are assured for its low power loss, minimal

CHOKE
